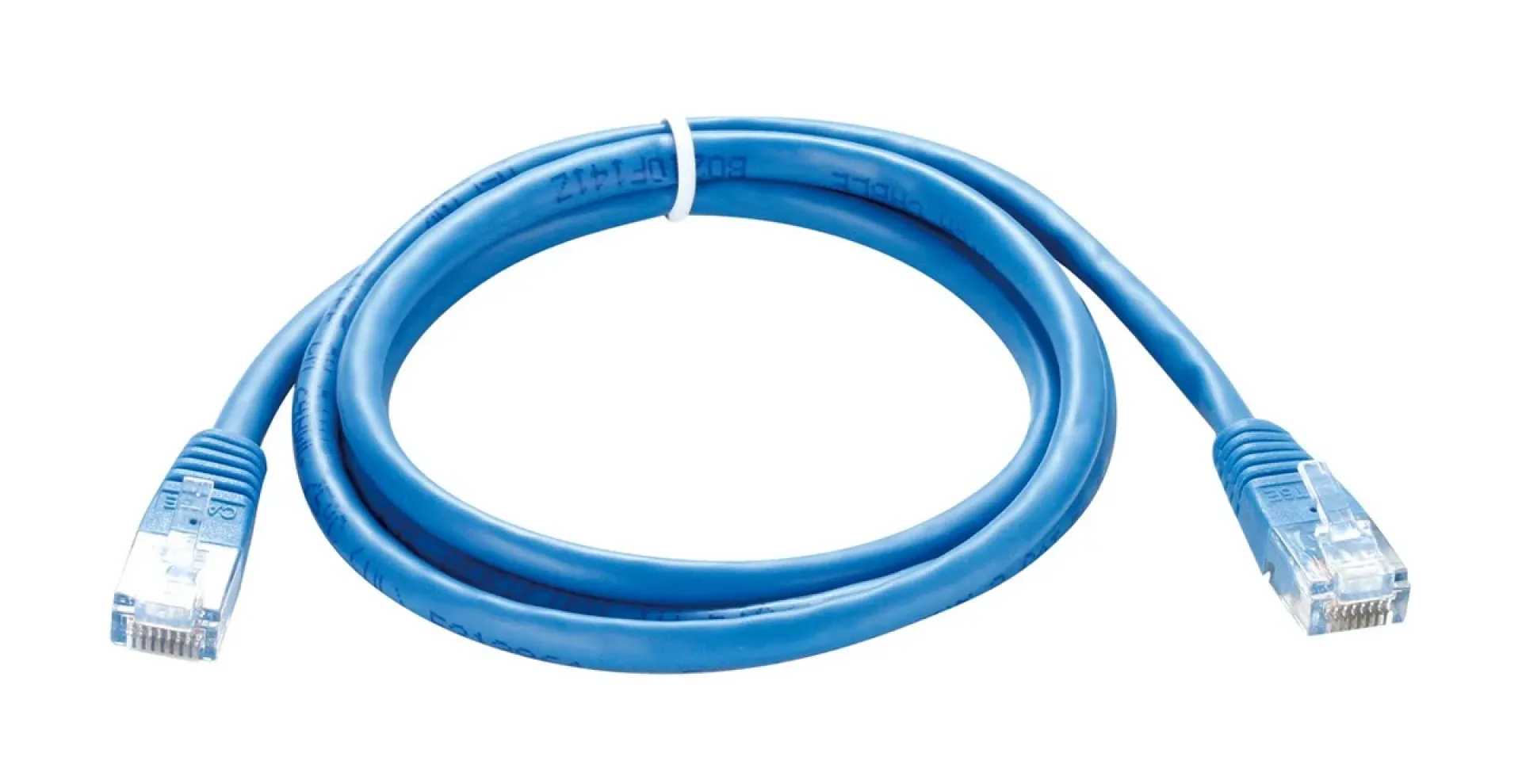

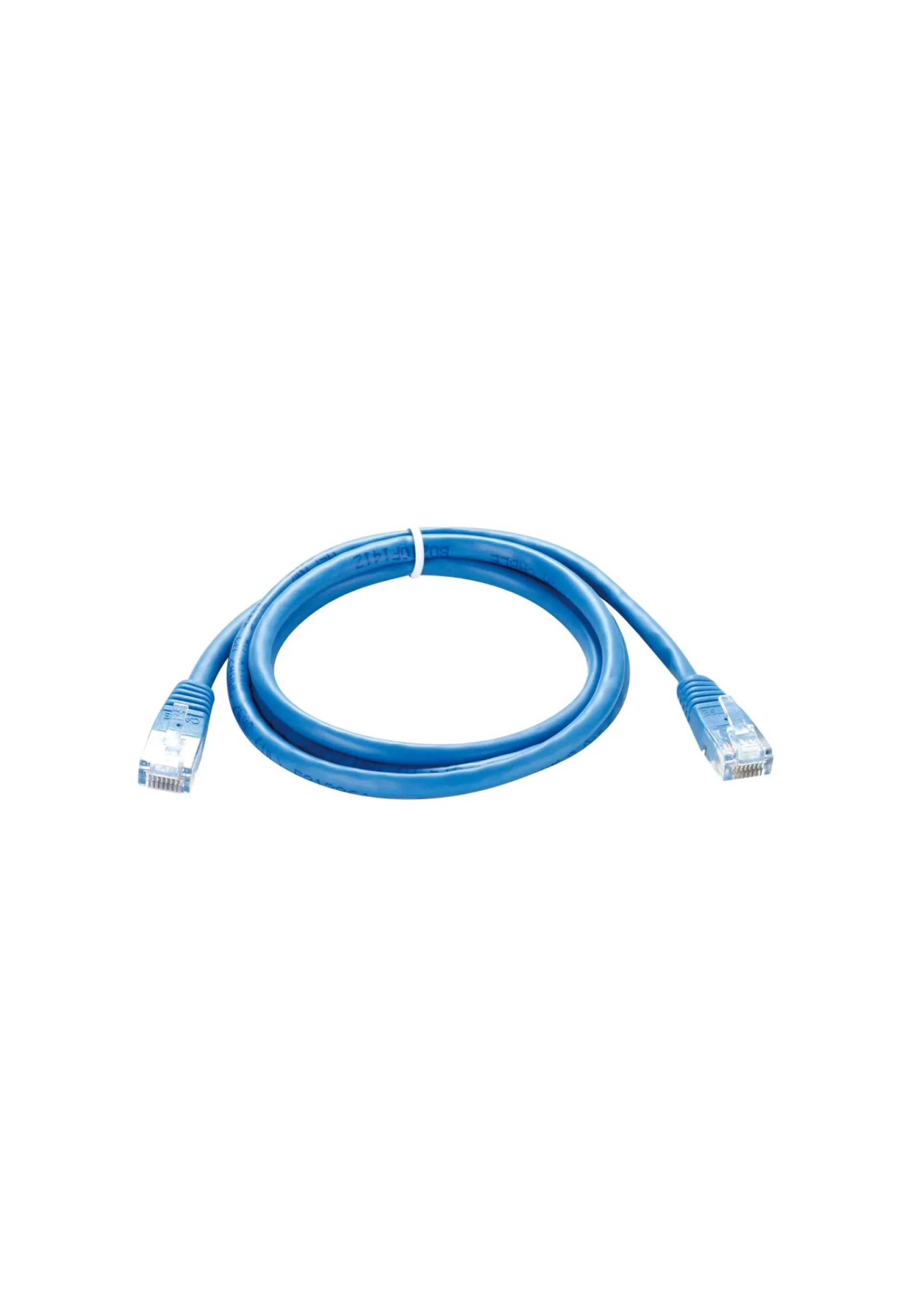

| Description | Cat6 UTP 24 AWG Round Patch Cord, 1M, Blue |
| Type | UTP |
| Cable Shape | Round |
| AWG | 24 AWG |
| Category | Cat6 |
| Color | Blue |
| Length | 1 m |
| Conductor | 24 AWG (7/0.203 ±0.007 mm), Multi-cores (7 cores at the least) |
| Conductor Metal | Bare Copper |
| Insulation Material | HD-PE |
| Insulation OD | 1.10 ±0.05 mm |
| Average Insulation Thickness | 0.25 mm |
| Outside Tape | MYLAR |
| Overlap Rate | 25% |
| Drain Wire | 26 AWG (7/0.160 ±0.007 mm) |
| Jacket Hardness | 45P (90A ±2A, Shore) |
| Jacket Material | PVC UL94V-0 |
| Jacket OD | 7.0 mm ±0.2 |
| Average Jacket Thickness | 0.60 mm |
| Jacket Color | Cool Gray 5C |
| Length Type | 3000 mm ±30 mm |
| Heat Resistance | 75°C minimum (Temperature limited) |
| Flame Property | Vertical flame test compliant with VW-1 (UL) / FT-1 (CSA) |
| Mutual Capacitance | 5.6 nF/100 m nominal |
| Characteristic Impedance | 100 Ω ±15%, 1–600 MHz |
| Nominal Velocity of Propagation | 69% |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| UL 444 | For copper conductor |
| UL 758 / Style 2835 | For Copper, CCA, CCAM & CCS conductors |
| UL 1581 | Test standard |
| TIA/EIA-568B.2 | Test standard |
| FCC Part 68.500 / IEC 60603-7-4 | For modular connector |
| D-Link Compliance | D-Link Product Hazardous Substance Management |
| Ethernet | 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE 802.3) |
| Networking | 100VG-AnyLAN (IEEE 802.12) |
| Broadband Video | 550 MHz Broadband Video |
| Voice | Voice, T1, ISDN |
| ATM | 155 / 622 Mbps ATM |
| Power over Ethernet | Supports Power over Ethernet (PoE) |
| BRANDS | D Link |
| Warranty | 1 Year Warranty |
| Shipping Cost |
|
| Delivery Time | Ready to ship in 1 Business Day |
| Shop Location | Hiteen Street, Rawdat Al Khail St, Doha 000000, Qatar |
